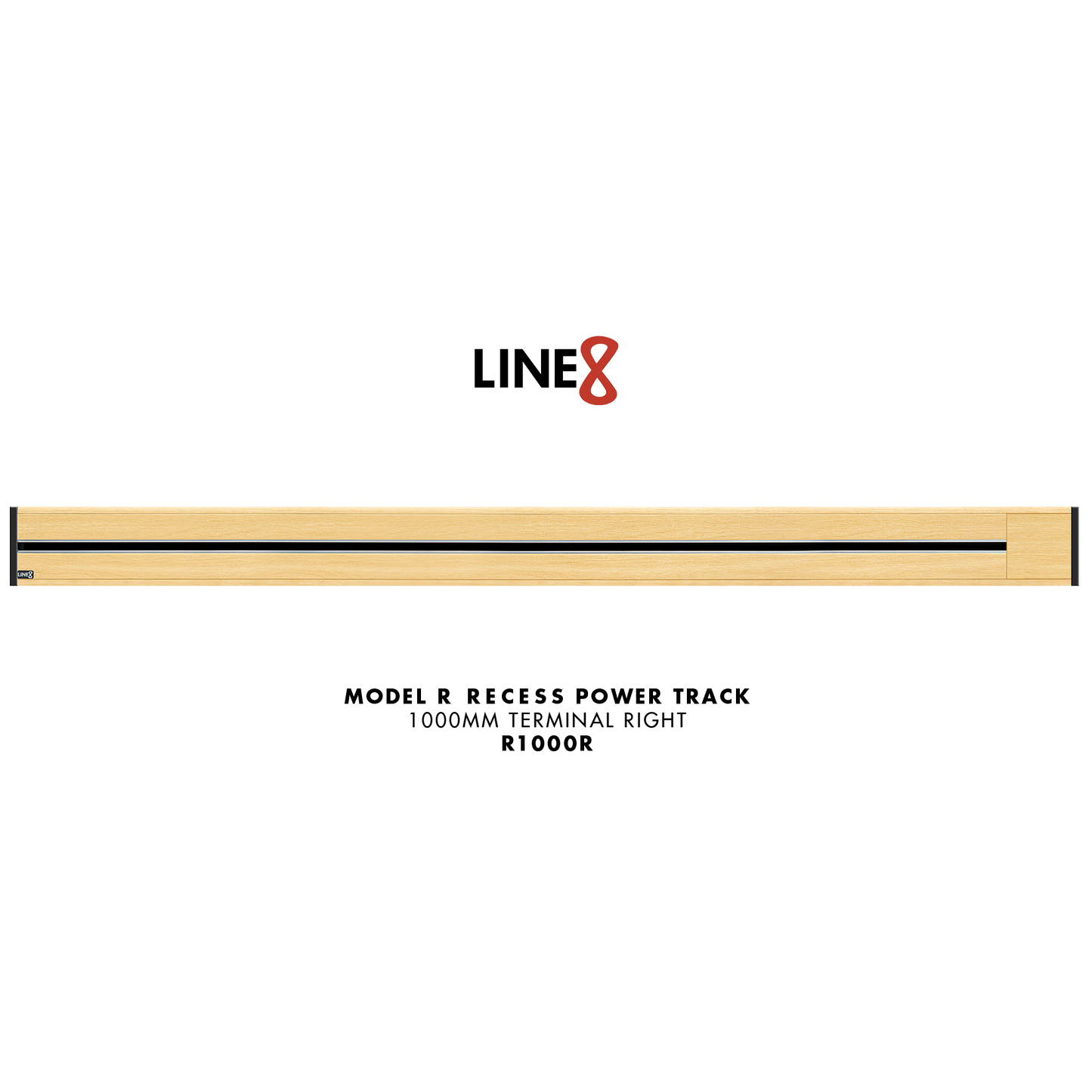

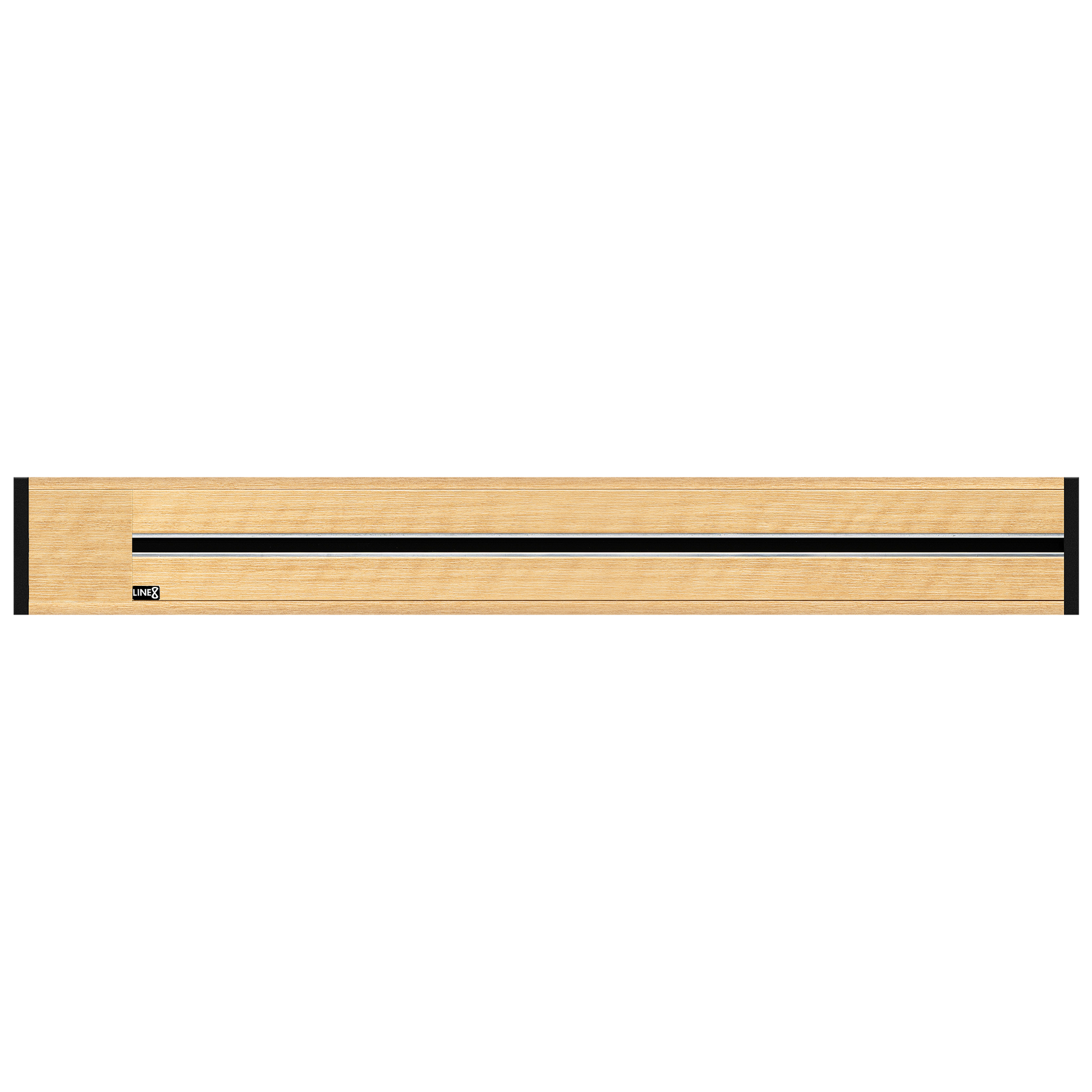

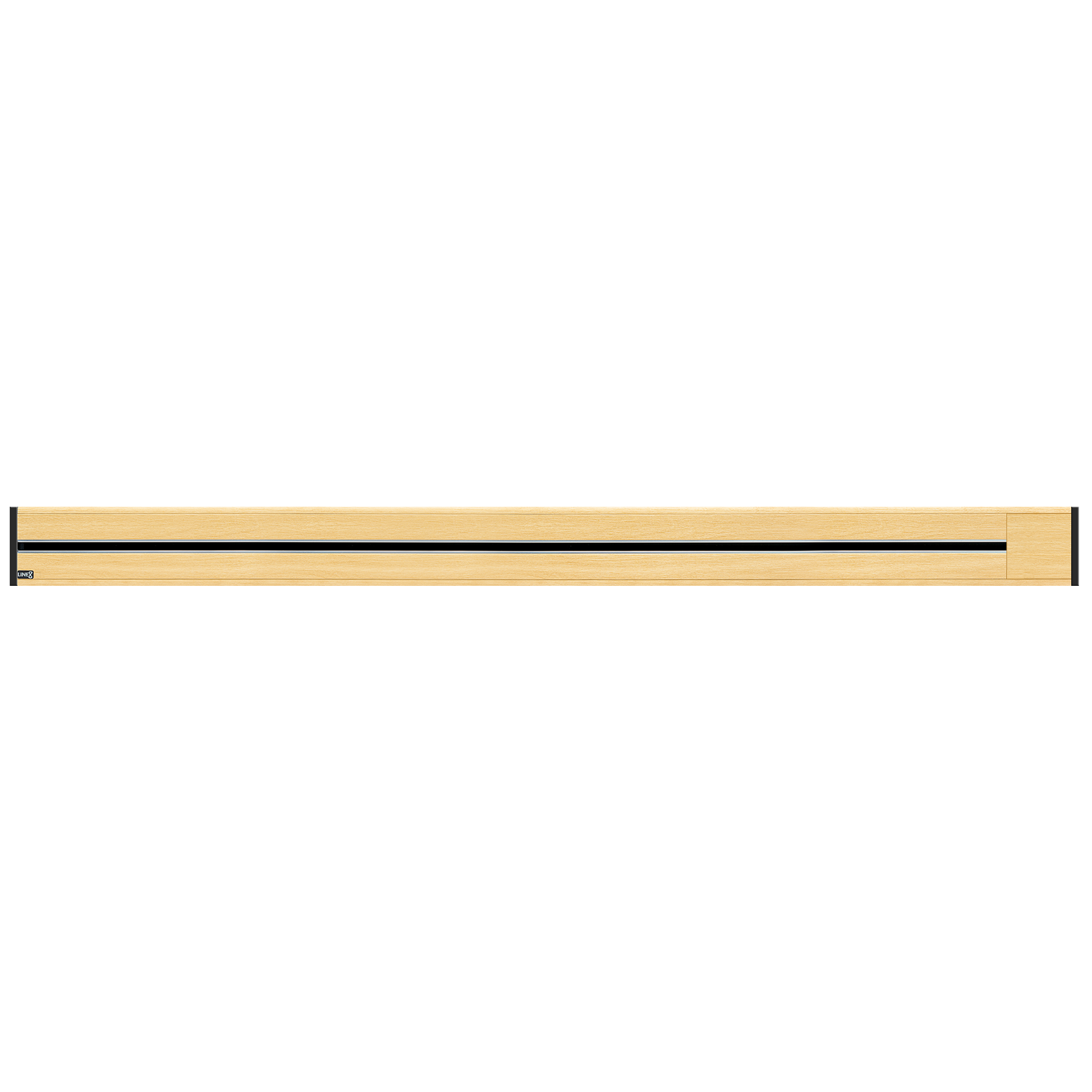

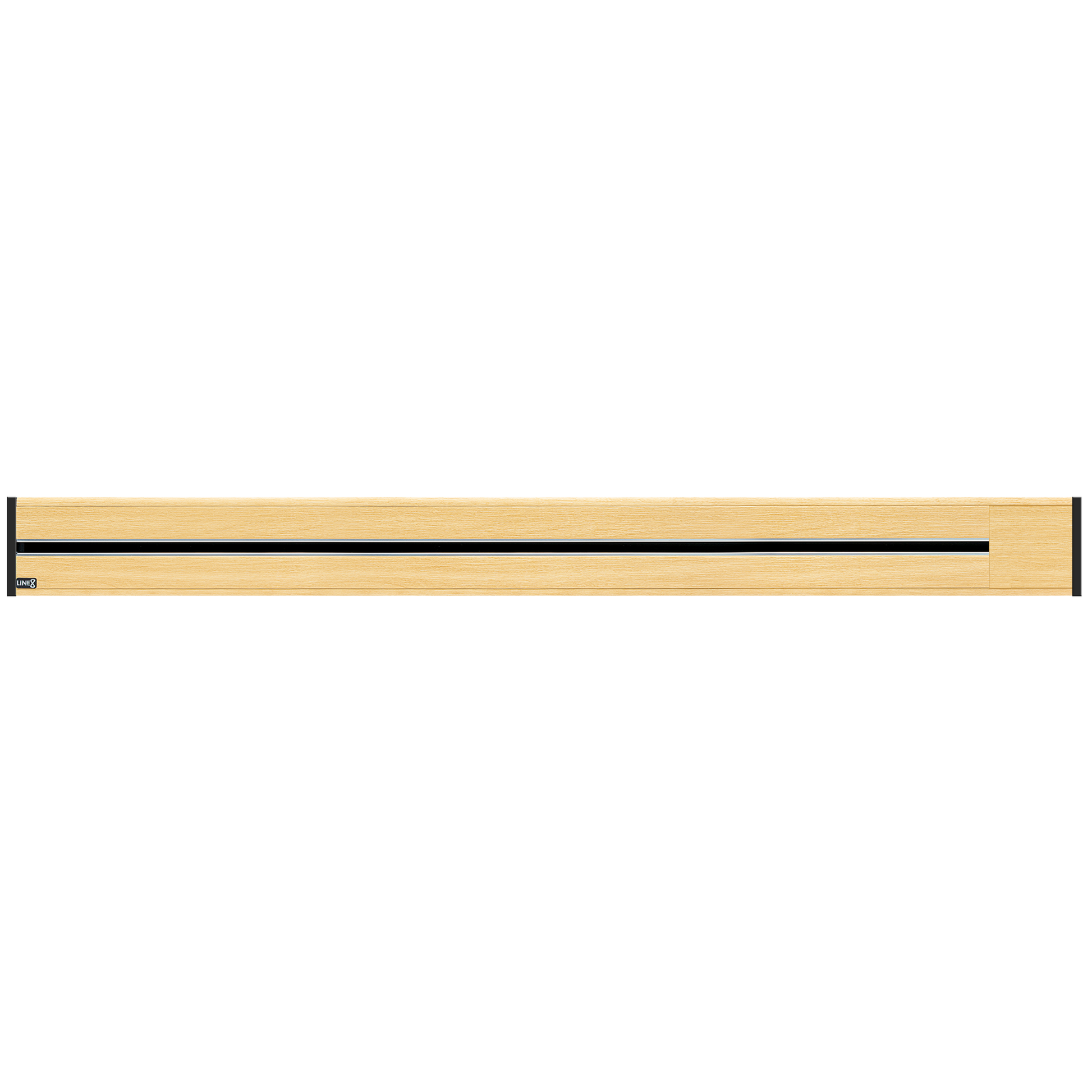

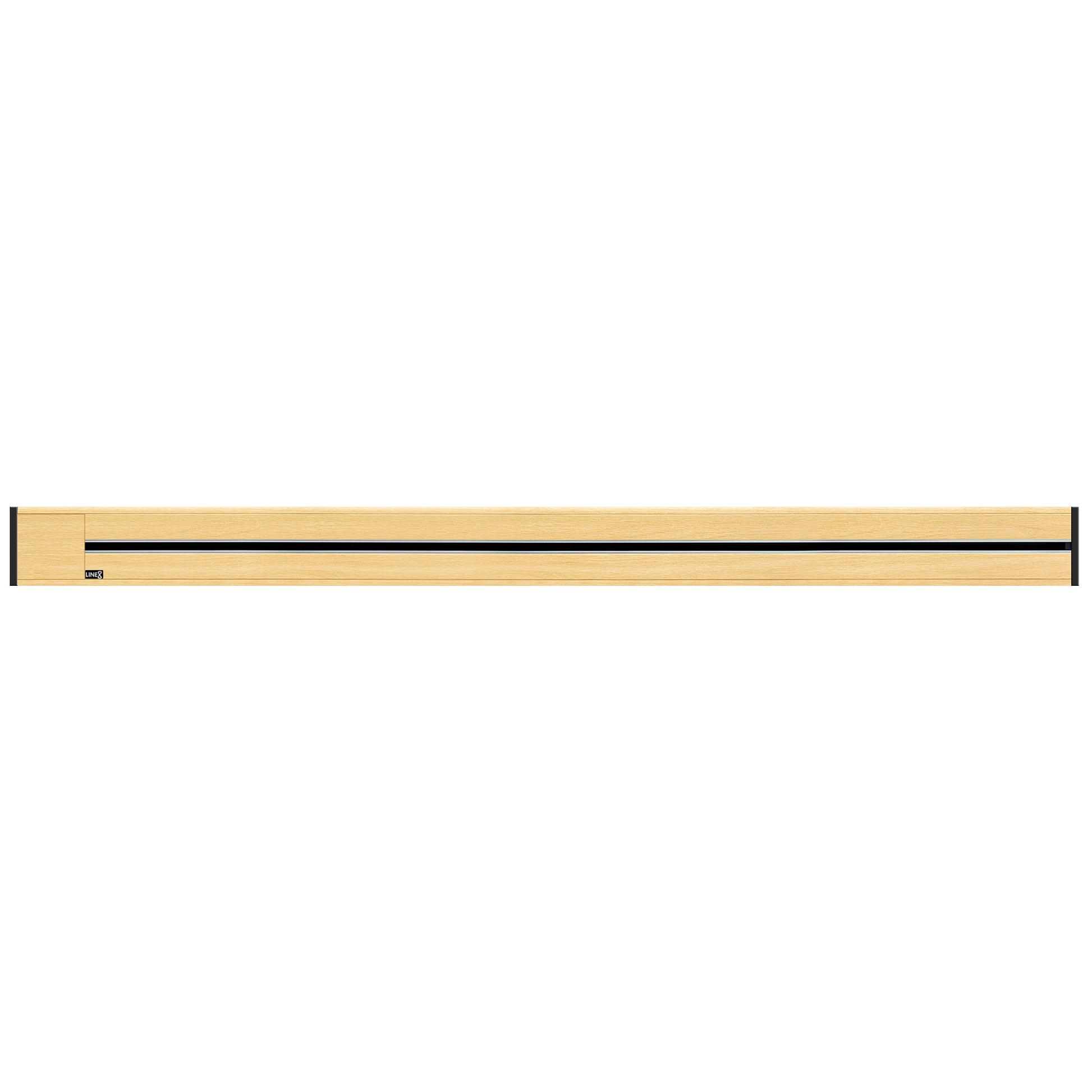

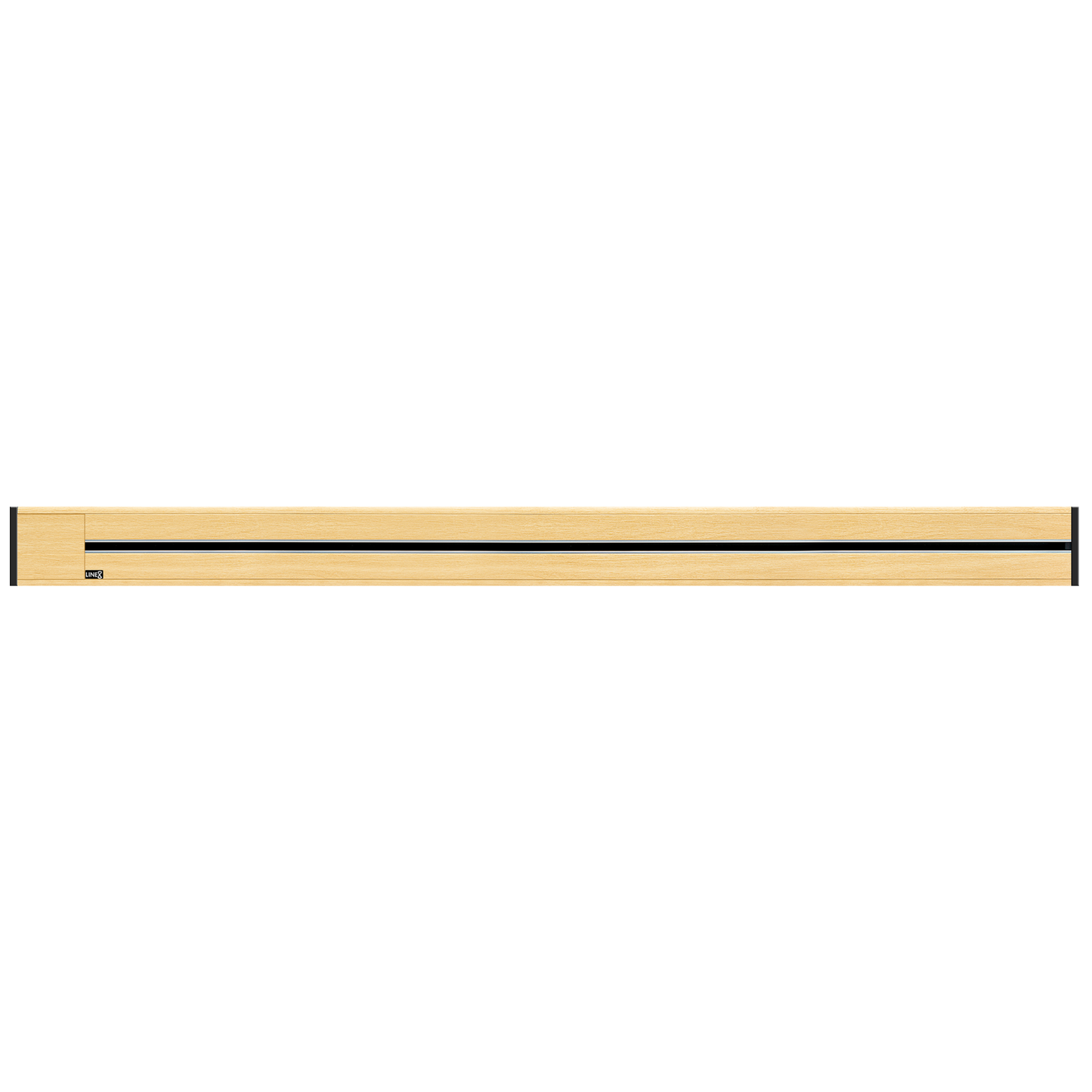

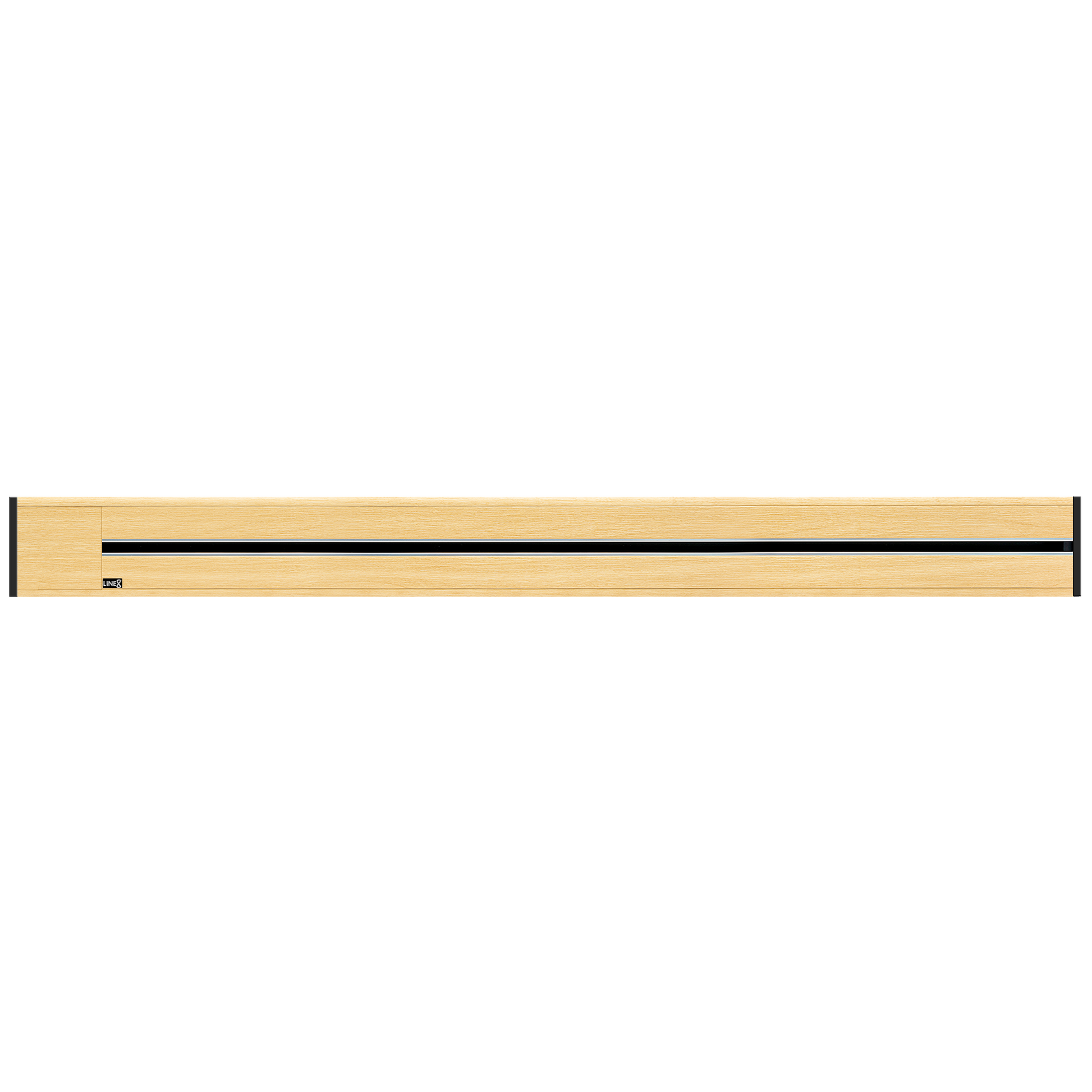

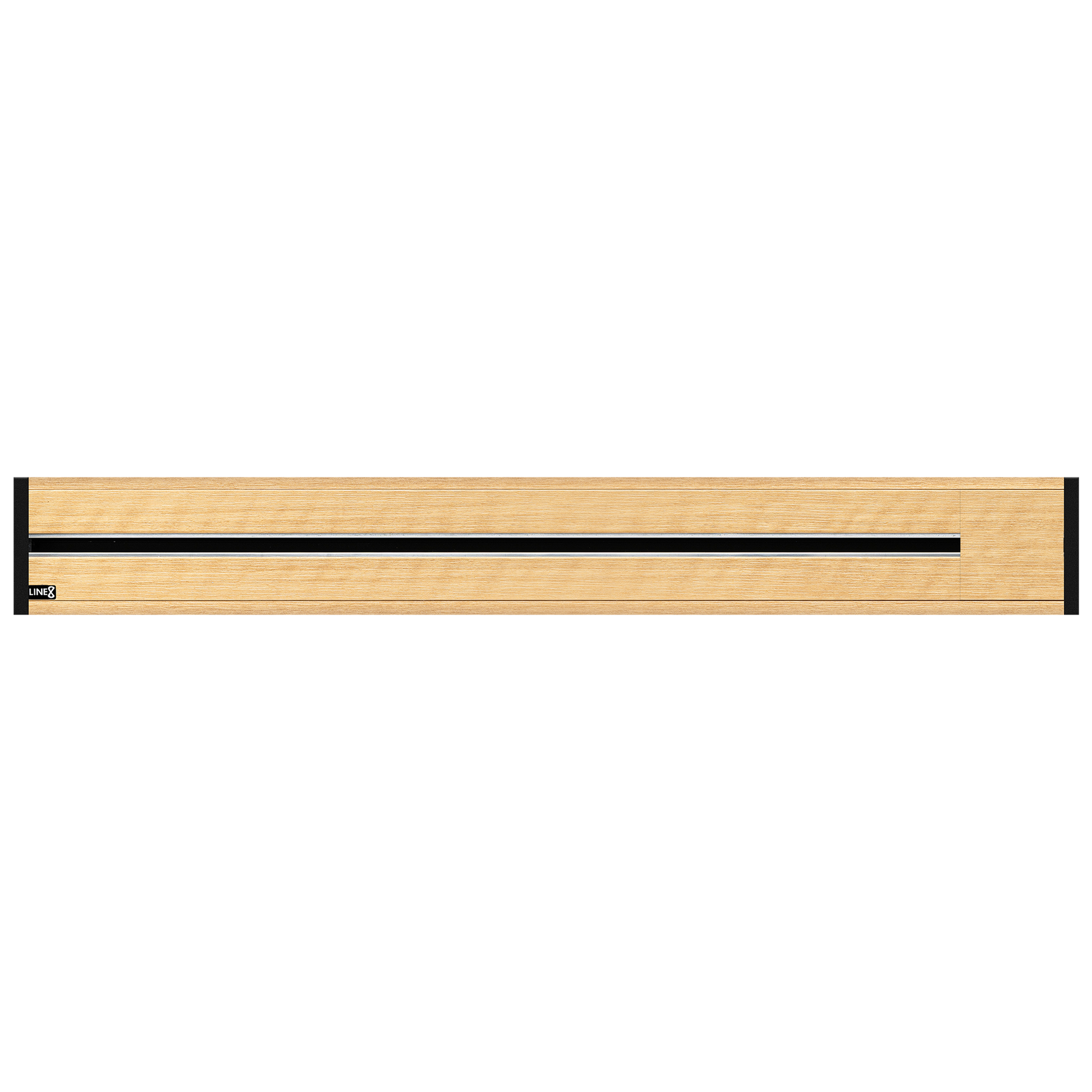

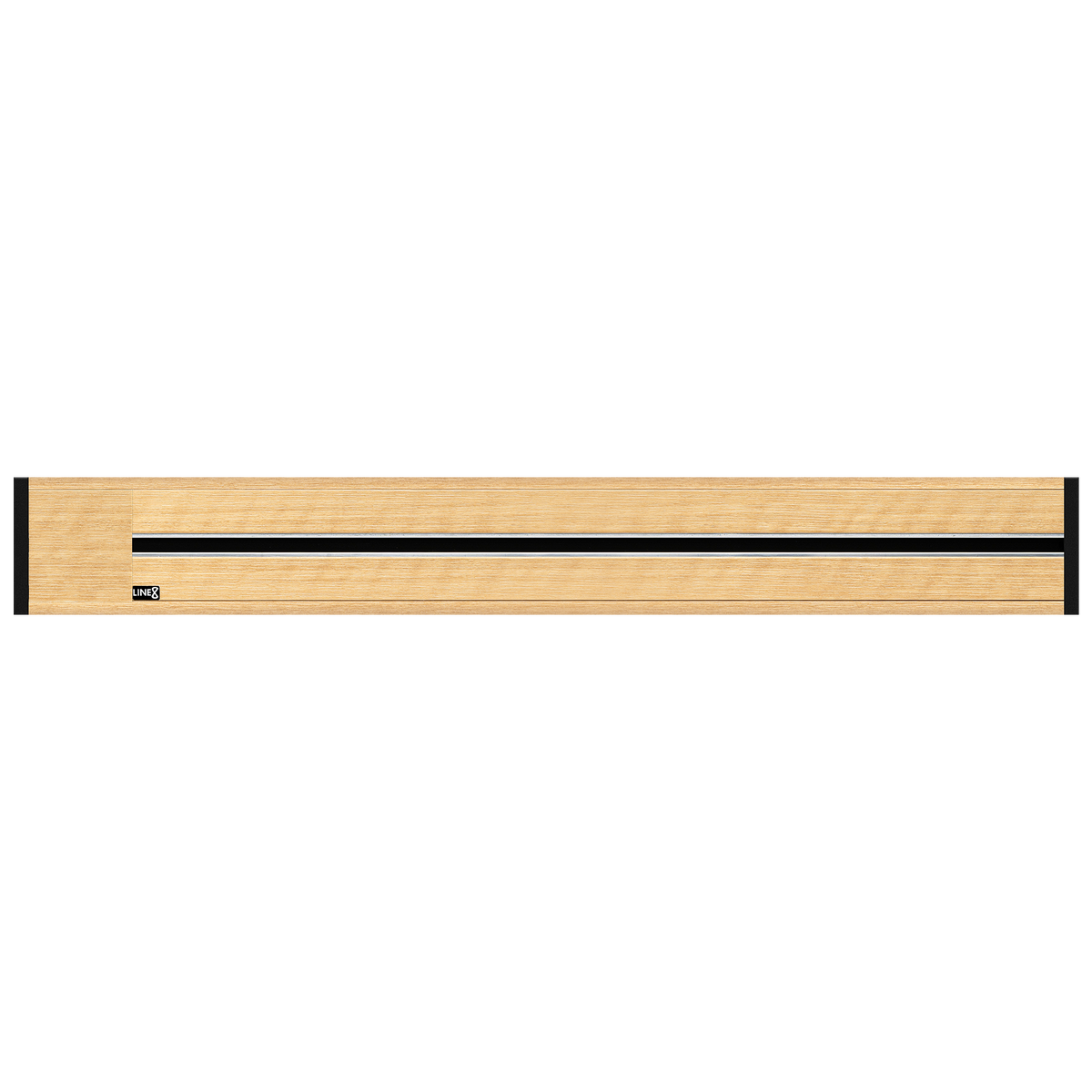

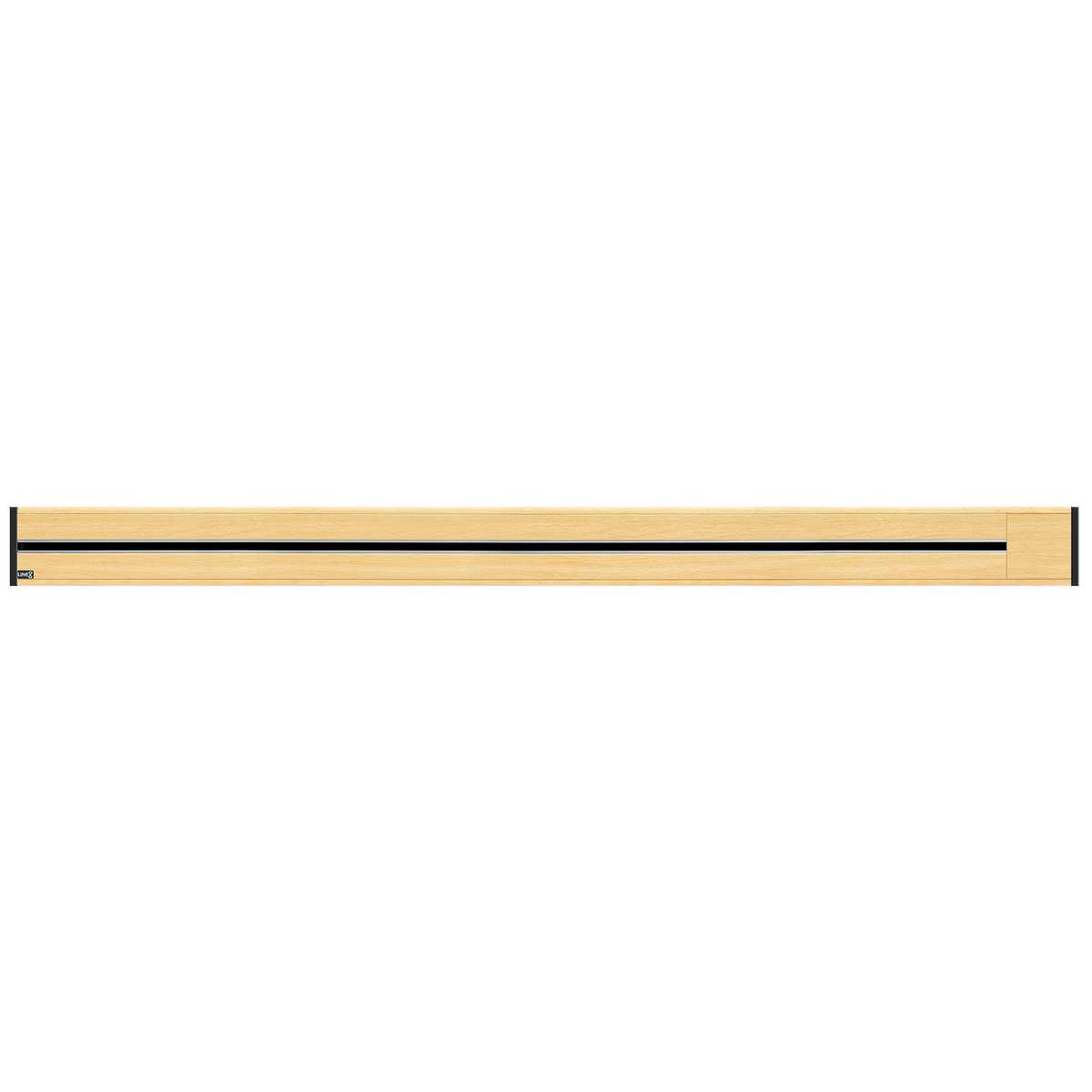

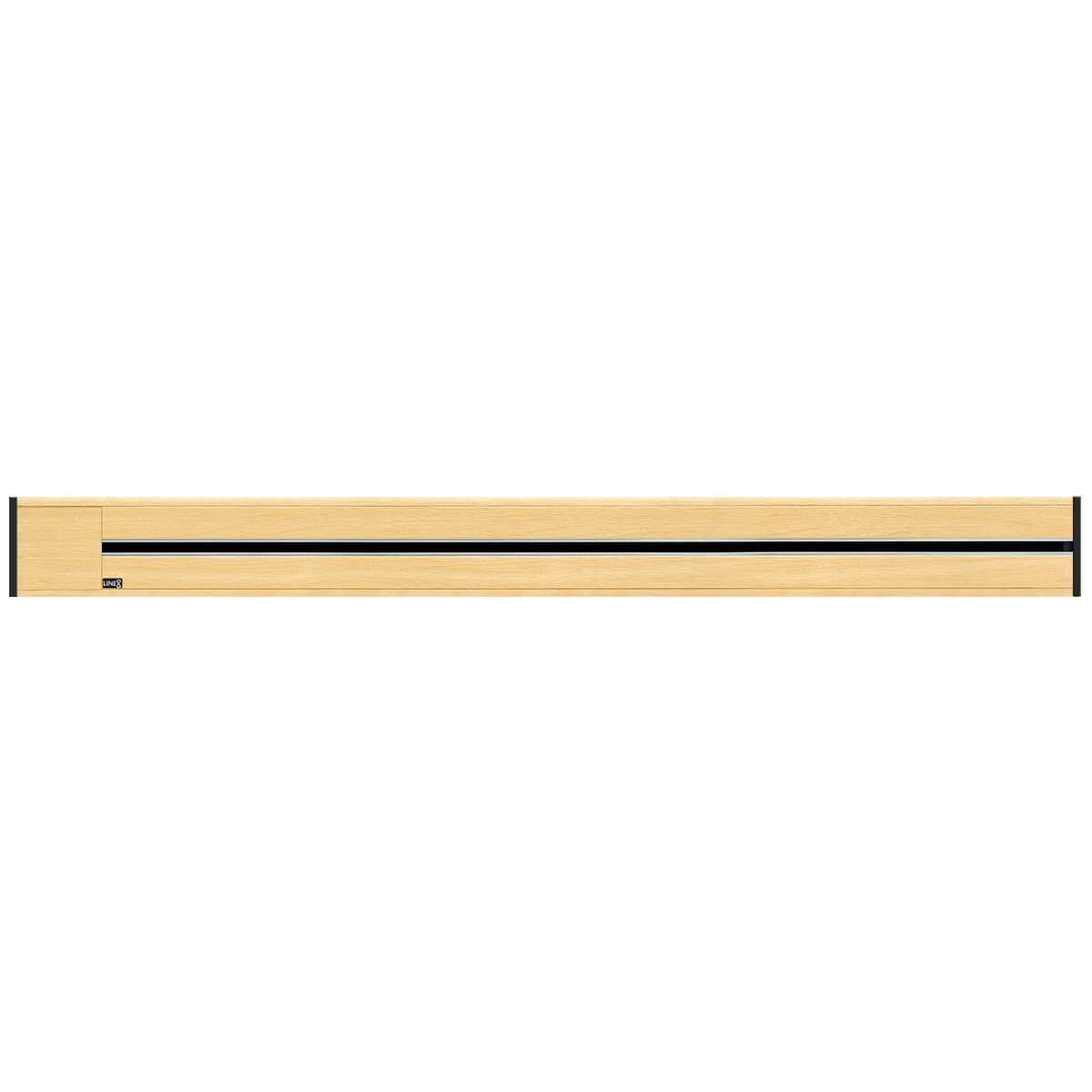

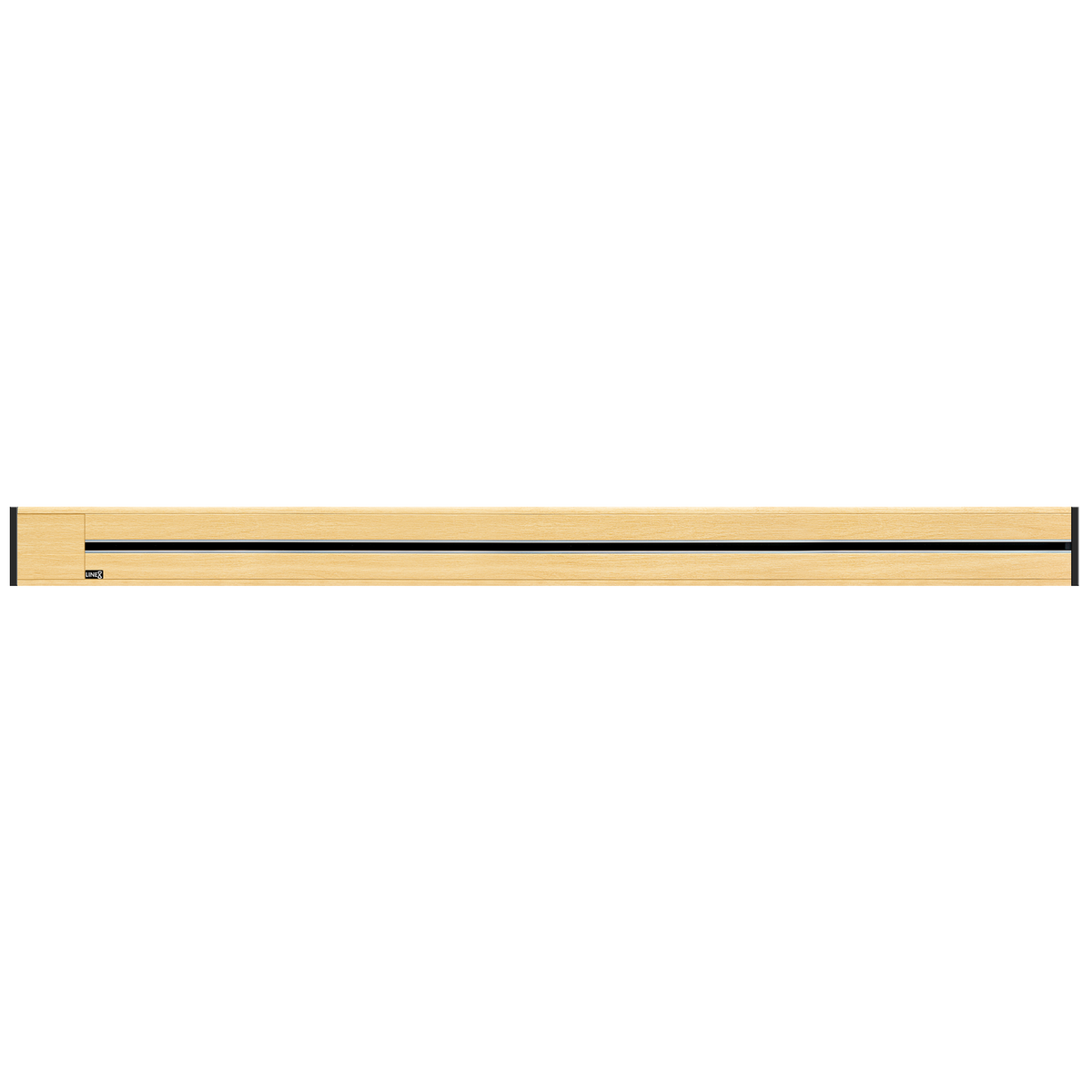

Line8 Model R Recessed Power Track - American Spruce Finish

Introducing Line8 Model R Power Track

Experience the ultimate power solution with Line8's Model R Power Track, proudly made in Singapore. Compatible with all Line8 adaptors, providing you with versatile power options to suit your needs.

Unmatched Quality and Design:
Choose from 11 exquisite finishes to complement your space, while enjoying the peace of mind that comes with our lifetime warranty in Singapore. Our power tracks are not only functional but also add an elegant touch to any environment.

Safety and Convenience:
Rest assured knowing that Line8 power tracks are tested and accredited with child-safe technology, prioritizing the safety of your loved ones. With our solution, you'll never run out of power outlets, thanks to the 600mm track that can accommodate up to 8 adaptors. Say goodbye to crowded power strips and hello to a sophisticated power solution.

Recess Hole Opening (Length, Width, and Depth Required for Installation)

For proper installation of the Model R power track, please follow the guidelines below:

Length and Width Requirements

The internal width of the track is fixed at 68mm, and the length is based on your customised order (e.g. 600mm). Each track includes a 5mm lip around all sides to rest securely on the surface and prevent it from falling through the recess.

To ensure a proper fit, the recommended recess hole opening should include a 2mm allowance beyond the internal track length for easier installation:

• Length: Customised order length + 2mm

• Width: 70mm

✅ Example: For a 600mm track, the recommended opening size is 602mm (L) × 70mm (W).

Depth Requirement

A minimum recess depth of 30mm is required. This allows for adequate cable management, accommodating:

• Two sets of electrical cables, and

• Up to four Cat6 data cables

If the recess is deeper than 30mm, that’s perfectly acceptable—the aluminium winged flanges of the track will still provide stable and secure support.

Specifications:

Rated Current: 32A~ 32A⎓ (Dual AC + DC)

Rated Voltage: 250V~ 250V⎓ (Dual AC + DC)

Certification: BS5733, BS1363, SS145, SS241, IEC61534, ISO9001

Fire Resistance: UL94 HB

Ingress Protection: IP2X

Made in: Singapore

Dimension :
